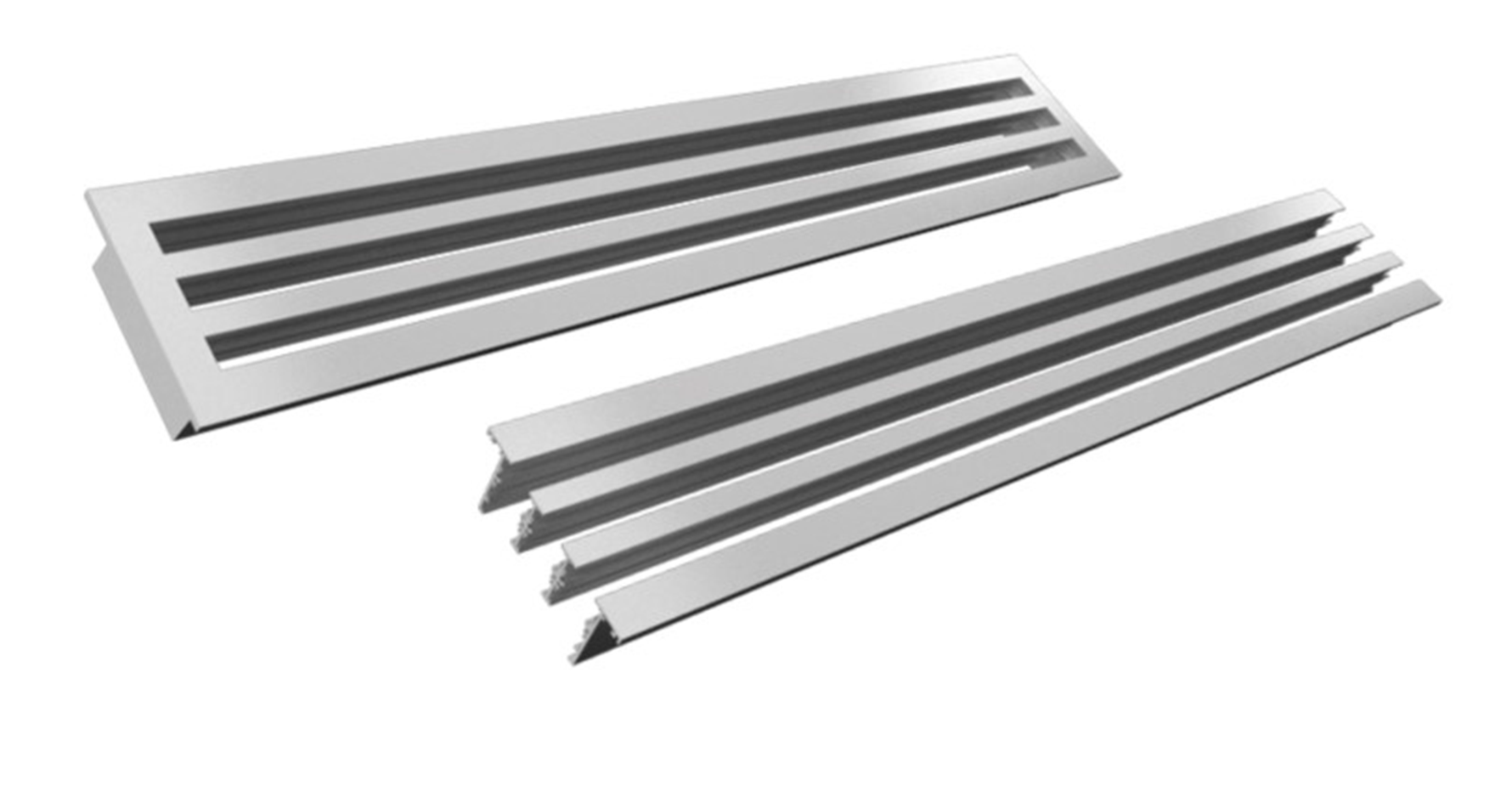

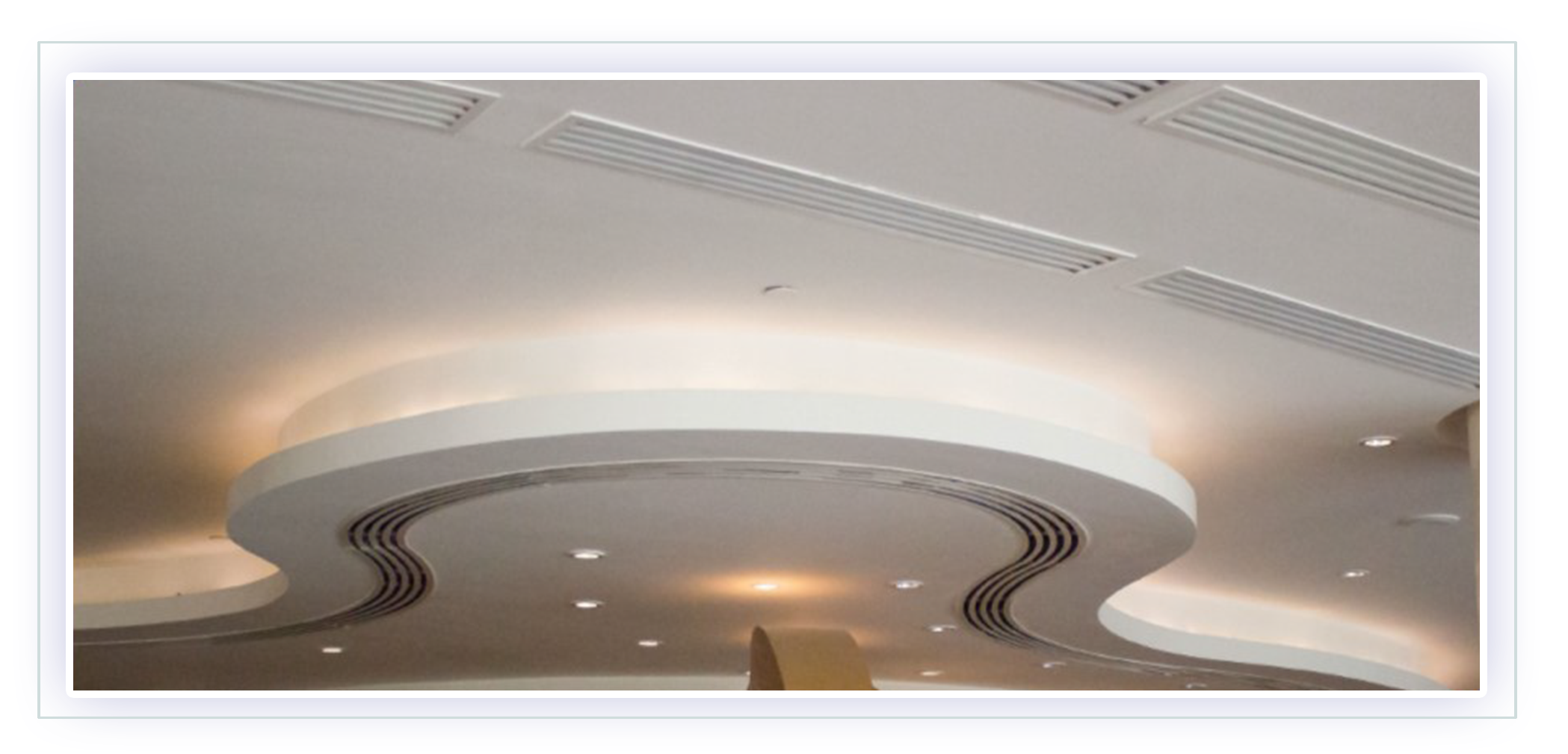

Linear Slot Ceiling Diffuser LCD
Made from High quality extruded aluminum profile with 30 mm flange width as standard and nonstandard widths are
available as option.
2- Blade
Made from High quality extruded aluminum profile with 20 mm flange width as standard and nonstandard widths are
available as option.
3- Damper
Made from aluminum sheets coated matte black.
4- Number available ( of slots )
l, 2, 3, 4, 5, 6, 7, 8.
- The frame and blades are of high quality extruded aluminum profiled construction with Powder coated color finish
- Slot diffuser fabricated of high quality aluminum extrusion and is satin anodized; the deflector and damper are coated matte black to accent the blotted together for a blemish-free application
- Air flow rate control is provided by deflection blades and volume control damper (hit and miss damper) adjustable from the diffuser face

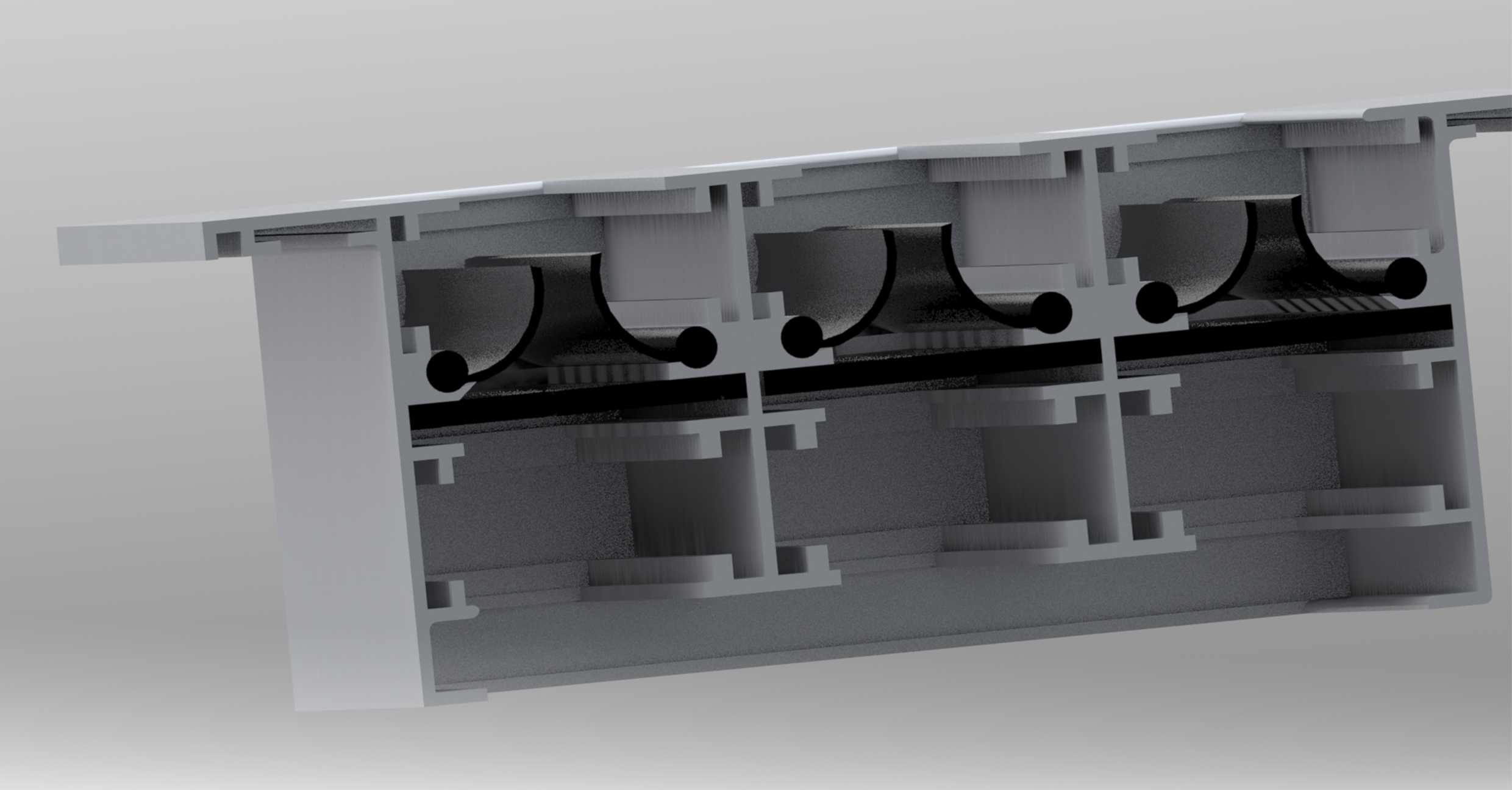

- Linear slot diffuser can be supplied with plenum box, which is manufactured from galvanized steel sheet as option
- In the supply mode the discharge can either be set horizontal or vertical directions by adjustment of the air deflection blades. For stable horizontal discharge continuous flat ceiling is normally required
- Curved linear slot diffusers are available from 3 m length with a minimum radius of curvature of 1m maximum length of linear slot diffuser in single piece 5.8 m
- Powder coated color finish per RAL color codes as standard and flexibility of finish

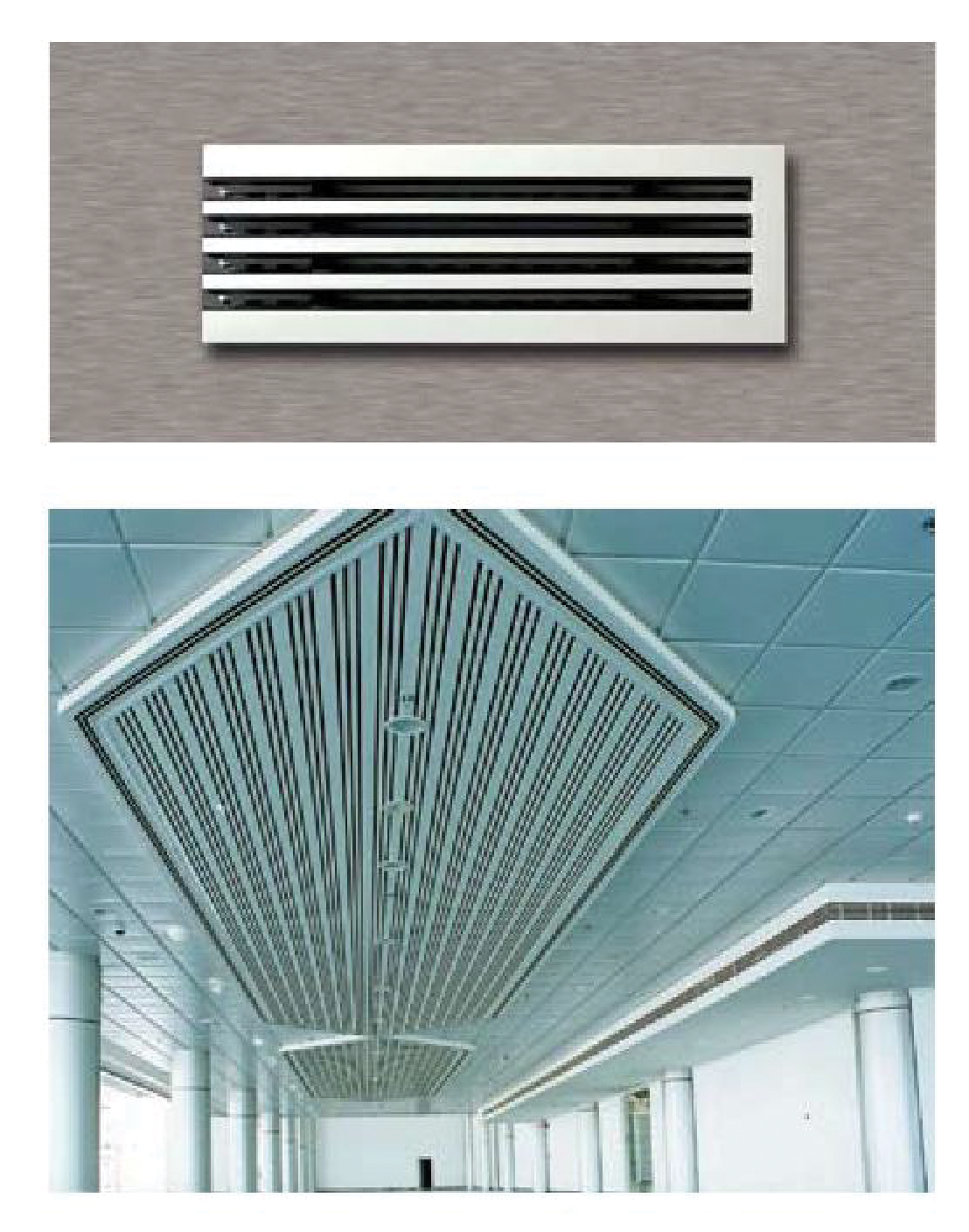

Supply Air Liner Slot Diffuser
Construction:
Frame & Blades: High quality extruded aluminum profiles.
Frame width: 30 mm standard. 20 mm also available
Damper: Hit and miss damper.
Slot width: 20 mm as standard. 16 mm, 25 mm and non standard sizes available as option.
Number of slots available: 1,2,3,4,5,6,7,8.
Length: Up to 5.8mt available in a single piece.
Optional accessories:plenum box either un-lined, internally insulated or externally insulated.

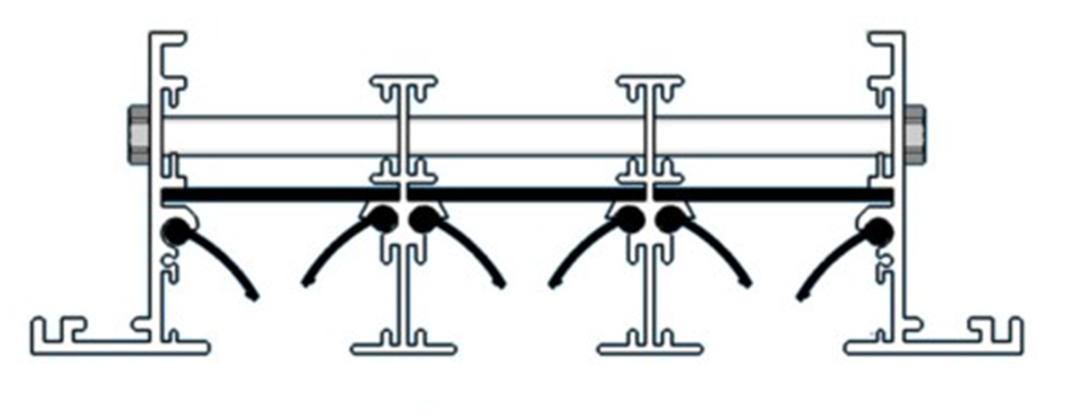

- Frame and deflection blades are made of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.

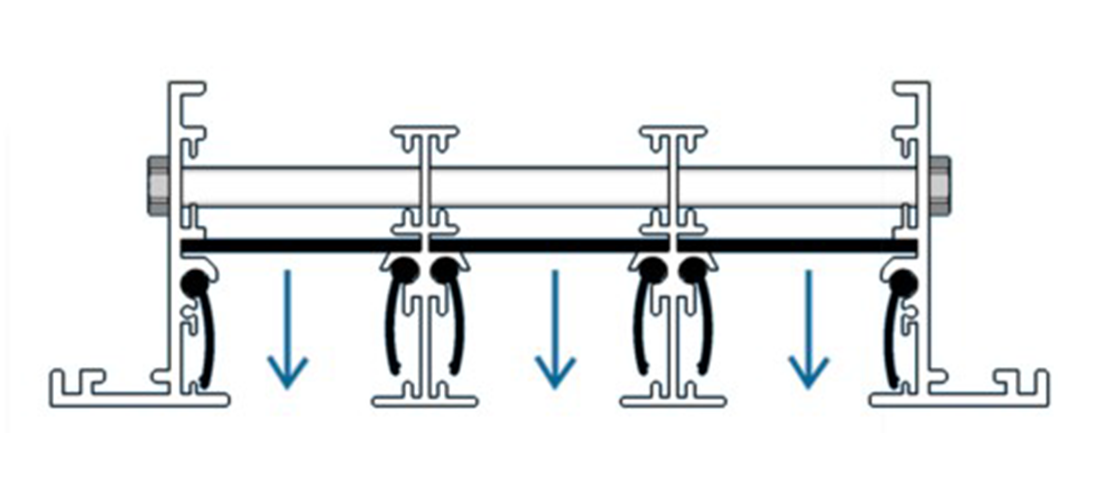

- Air distribution can be changed vertically or horizontally by means of deflection blades without changing the air flow rate. These blades can be fully adjusted from face opening.

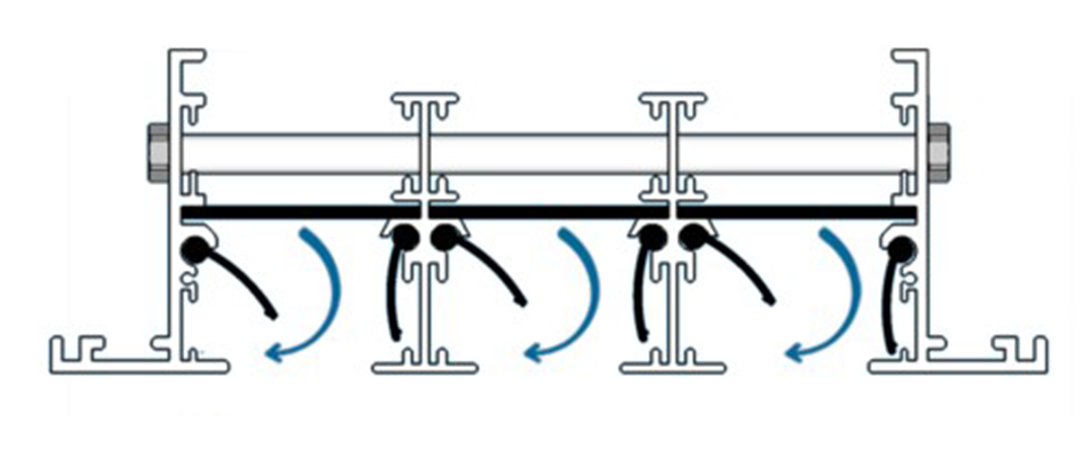

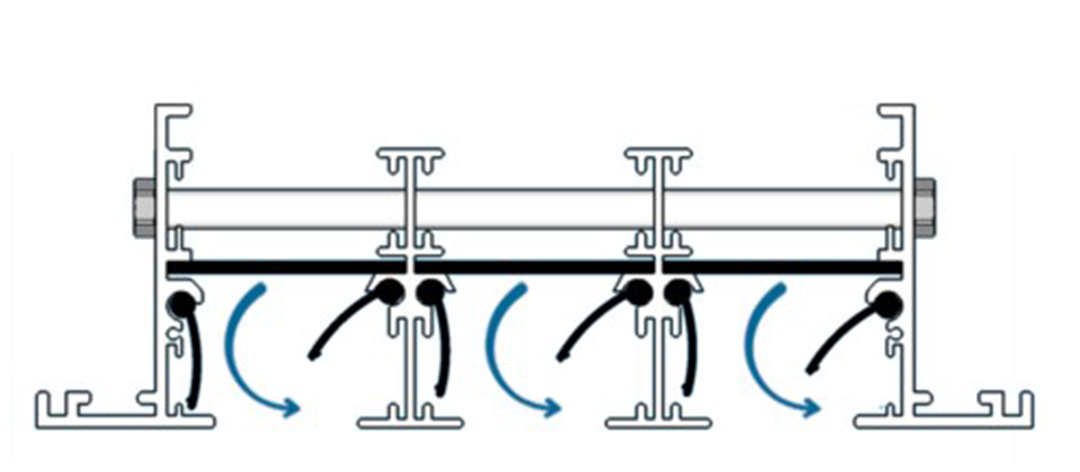

- Air flow rate can be adjusted by fixing hit and miss damper at the rear side of the diffuser. Damper blades are adjusted from the face opening.
- Dampers are designed in a unique way that it can be used as an equalizing grid.

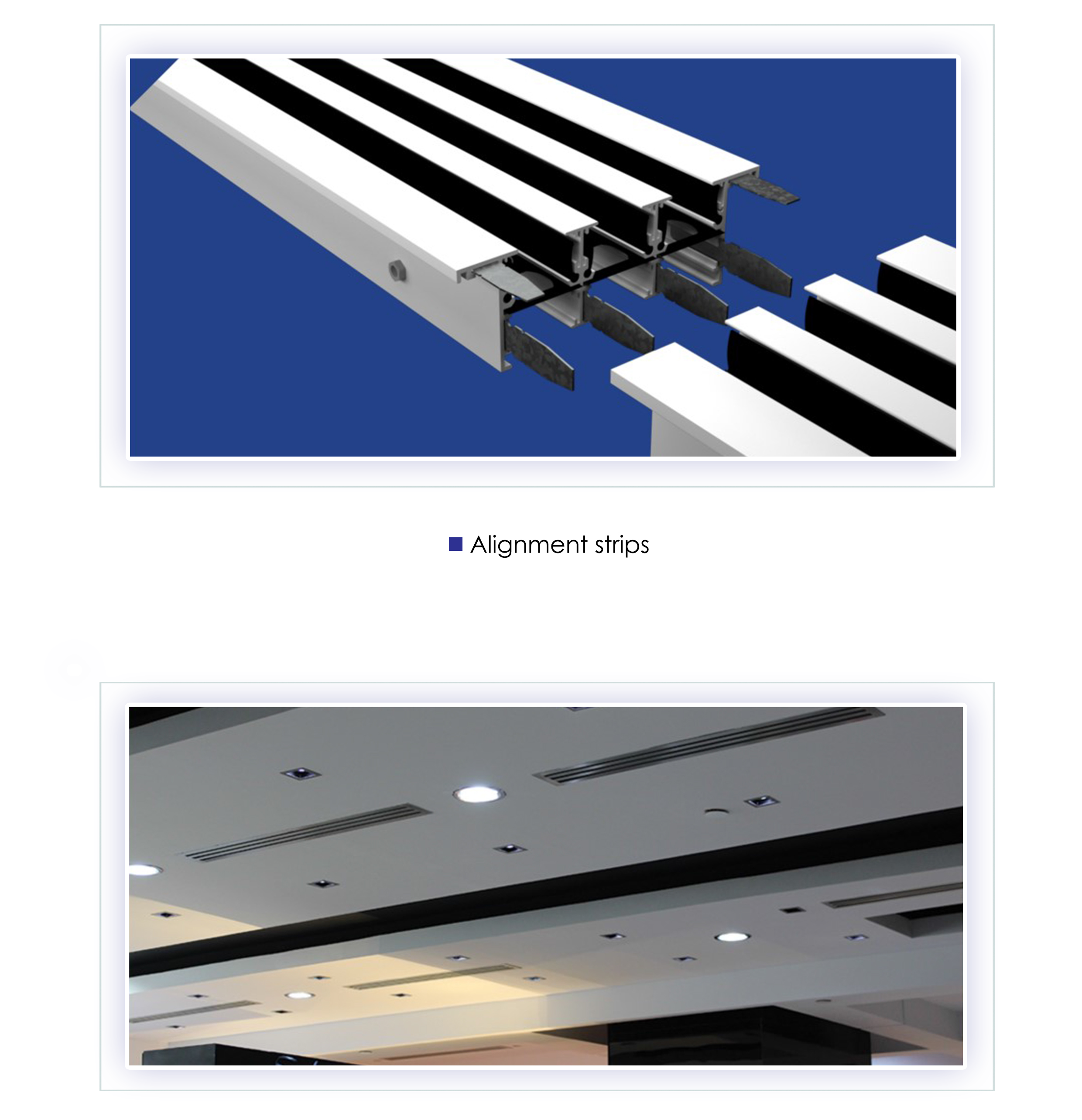

- Positive alignment of adjacent sections can be made by using alignment strips.
- Suitable for installation for ceiling and sills.
- Foam gasket sealed around the back of the frame to avoid air leakage.
Standard finishes:
- Natural anodized aluminum finish.
- Powder coated color finish as per RAL color code.
- Flexibility of finish available.
Return Air Linear Slot Diffuser
Construction:
Frame & Blades: High quality extruded aluminum profiles.
Frame width: 30 mm standard. 20 mm also available.
Damper : Hit and miss damper.
Slot width: 20 mm as standard. 16 mm, 25 mm and non standard sizes available as option.
Length: Up to 5.8mt available in a single piece.
Optional accessories: Plenum box either un-lined, internally insulated or externally insulated.
Description:
- Frame and deflection blades are made of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Positive alignment of adjacent sections can be made by using alignment strips that are provided with each diffuser.
- Structure is manufactured by mechanical assembly to ensure rigidity and straight line appearance.
- Available without hit and miss damper as standard. Damper will be provided as option.
- Suitable for installation into ceiling and sills.
Standard finishes:
- Natural anodized aluminum finish.
- Powder coated color finish as per RAL color code.
- Flexibility of finish available.

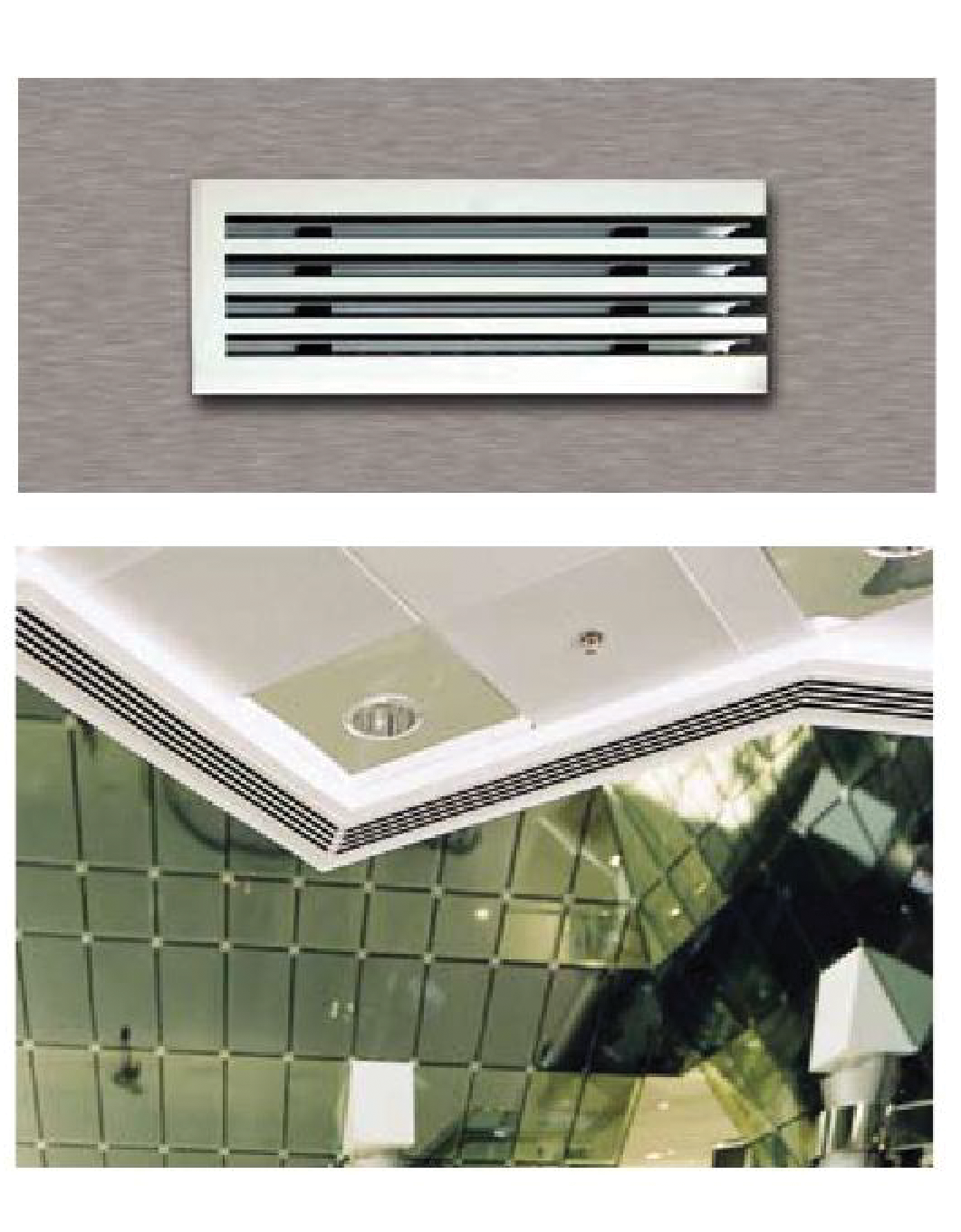

Curved Supply Air Linear Slot Diffuser
Frame & Blades: High quality extruded aluminum profiles.
Frame width: 30 mm standard. 20mm also available.
Damper : Hit and miss damper.
Slot width: 20 mm as standard. 16 mm, 25 mm and non standard sizes available as option.
Number of slots available: 1,2,3,4,5,6,7,8.
Length: Up to 3 mt available in a single piece.
- Frame and deflection blades are made of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Hit and miss damper will be fixed rigidly at the rear side of the diffuser as option.
- Positive alignment of adjacent sections can be made by using alignment strips.
- Foam gasket is sealed around the back of the frame as option to avoid air leakage.
- Suitable for installation in ceiling and sills.
- Supply and return air curved linear slot diffusers are available up to a length of 3 meters with a minimum radius of curvature of 1 meter.
- Standard application on the ceiling.
Standard finishes:
- Natural anodized aluminum finish.
- Powder coated color finish as per RAL color code.
- Flexibility of finish available.

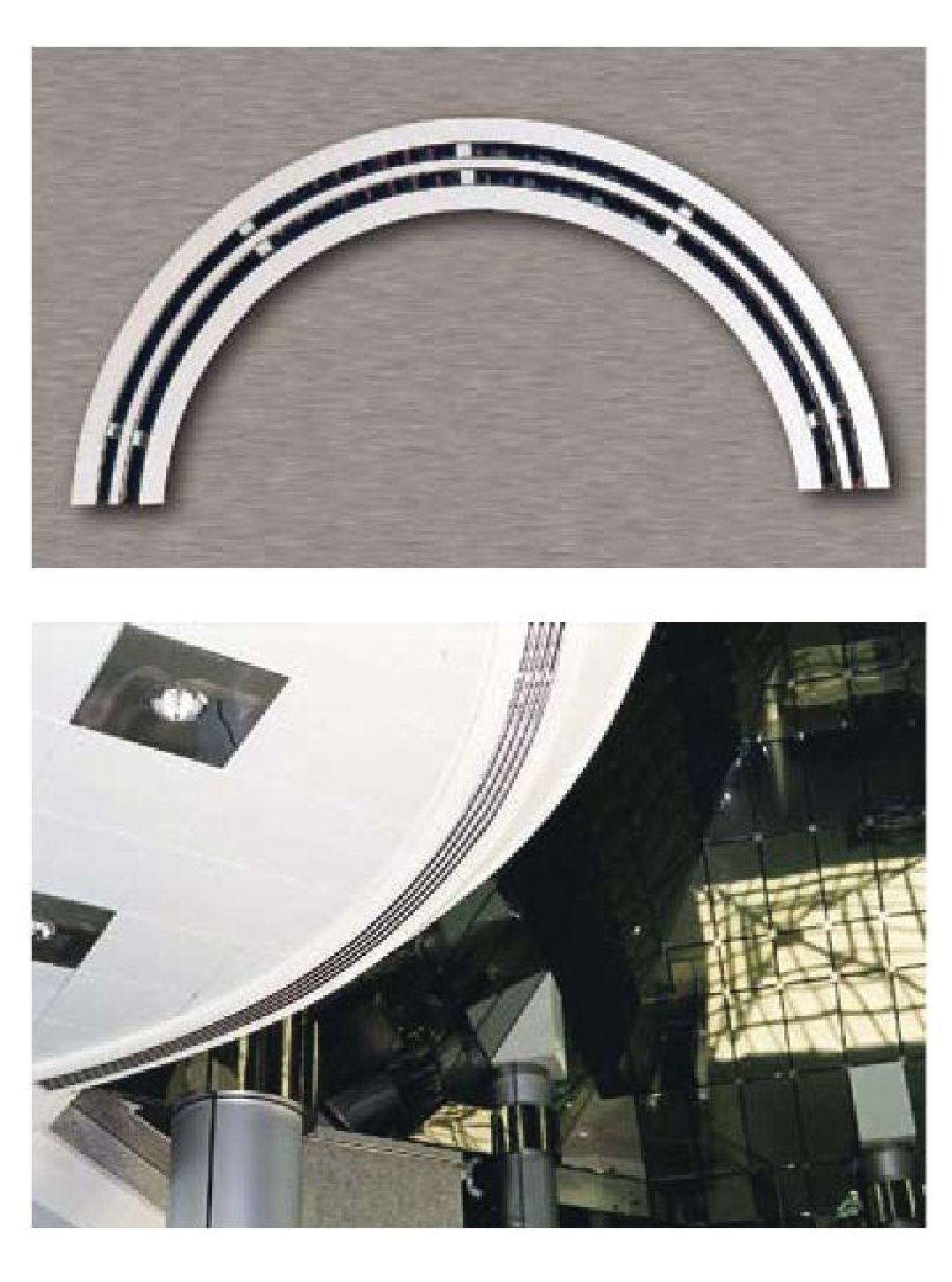

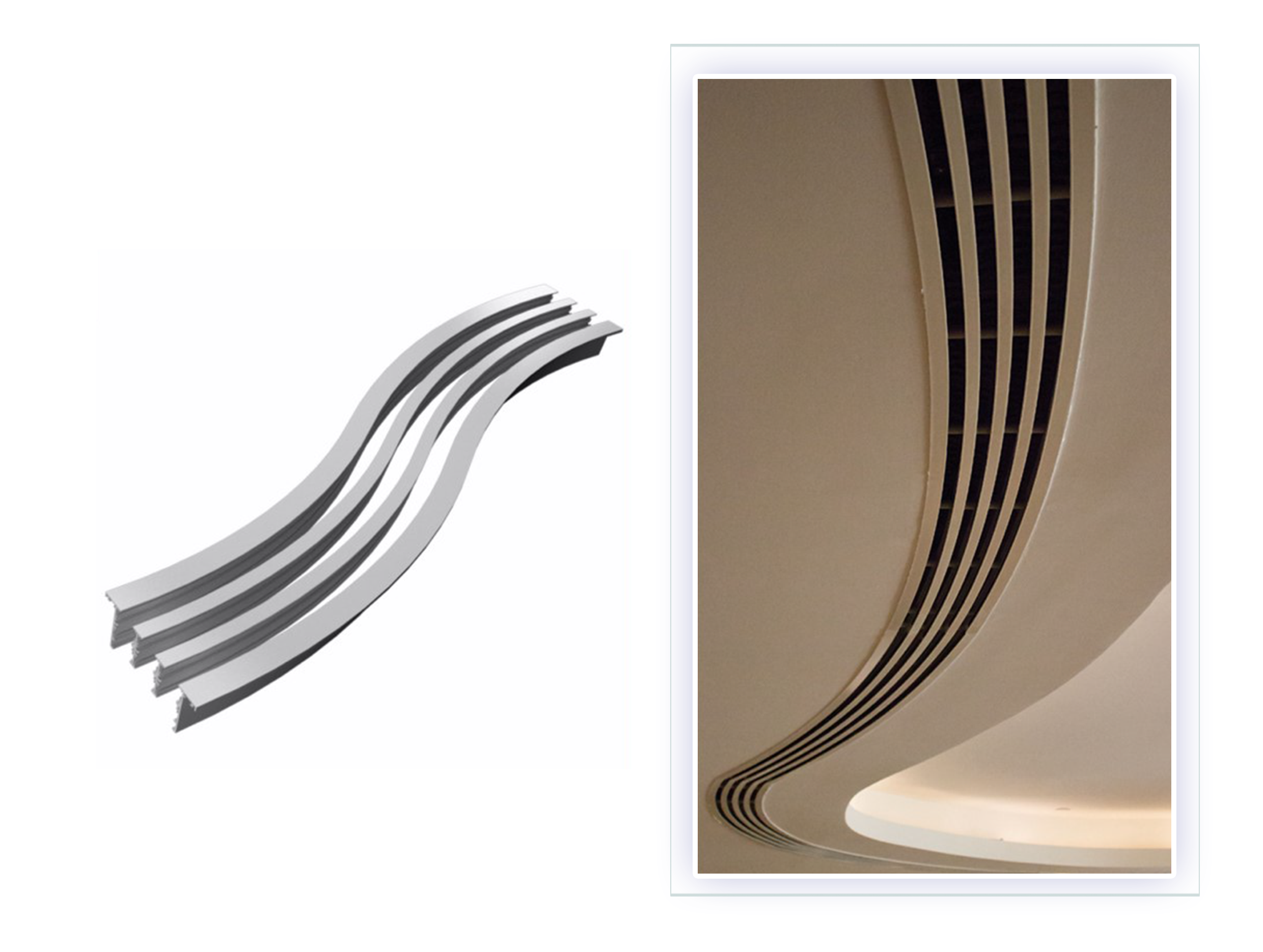

Curved Slot Diffuser
- Supply and return air Curved slot diffusers are available from 3 m length with a minimum radius of curvature 1 m.
- Curved slot diffusers can be supplied with damper.

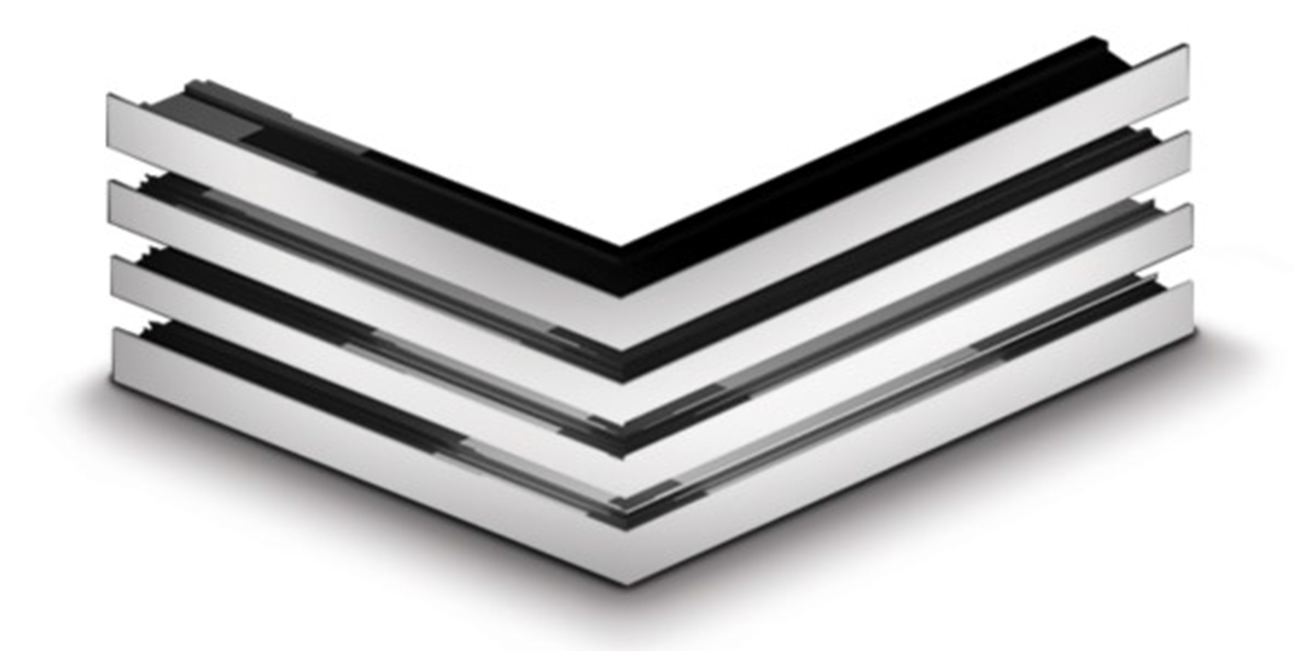

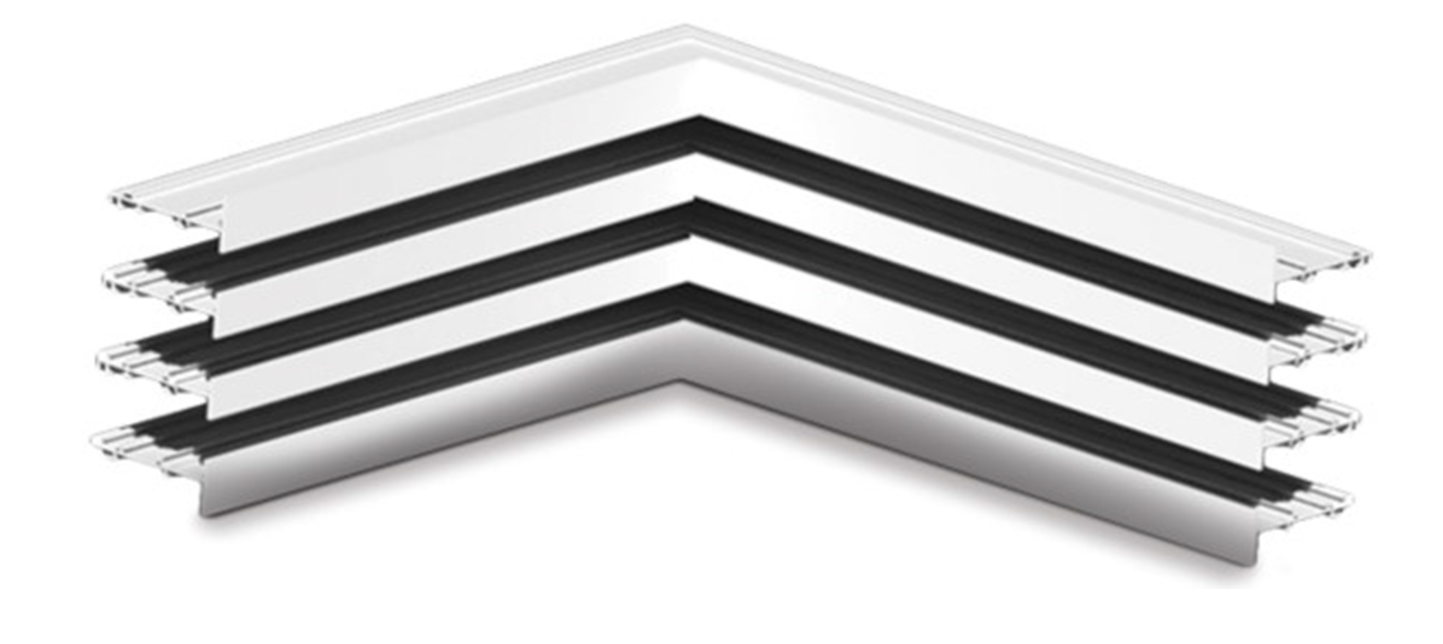

Mitered Corners
- Vertical inside mitered corners with 90o as standard and nonstandard angles are available.
- Vertical outside mitered corners with 90o as standard and nonstandard angles are available

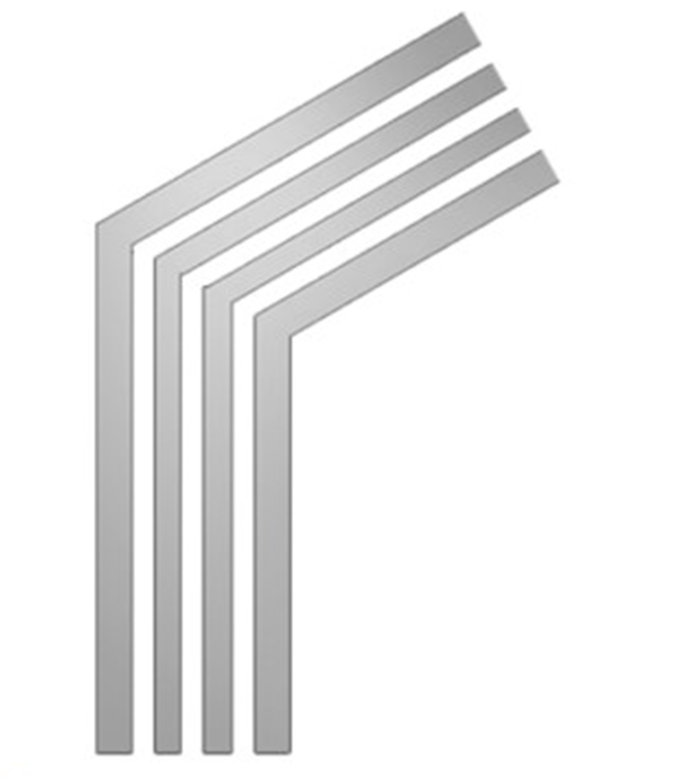

- Nonstandard angle horizontal mitered corners (angle greater than 90o and less than 180o )

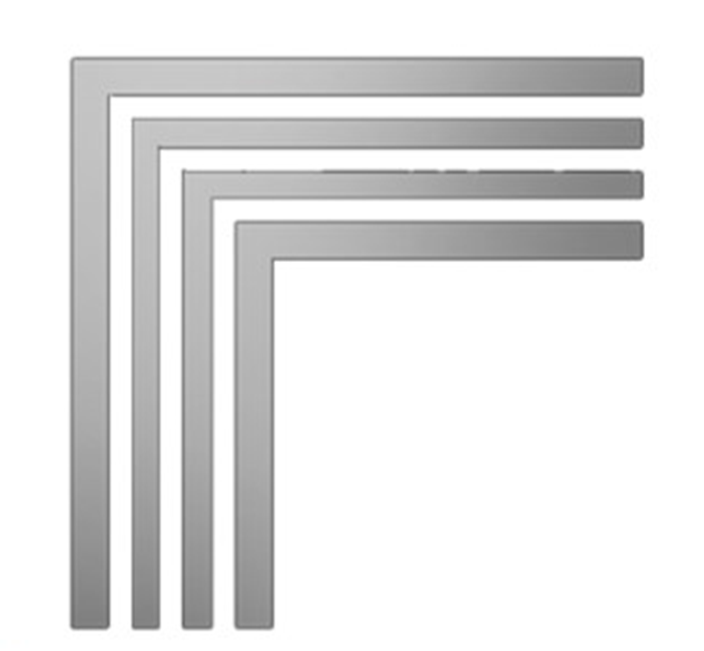

- Standard 90o horizontal mitered corners
Air Distribution
- Right horizontal distribution
- Vertical distribution
- Left horizontal distribution
- Adjust the air flow rate

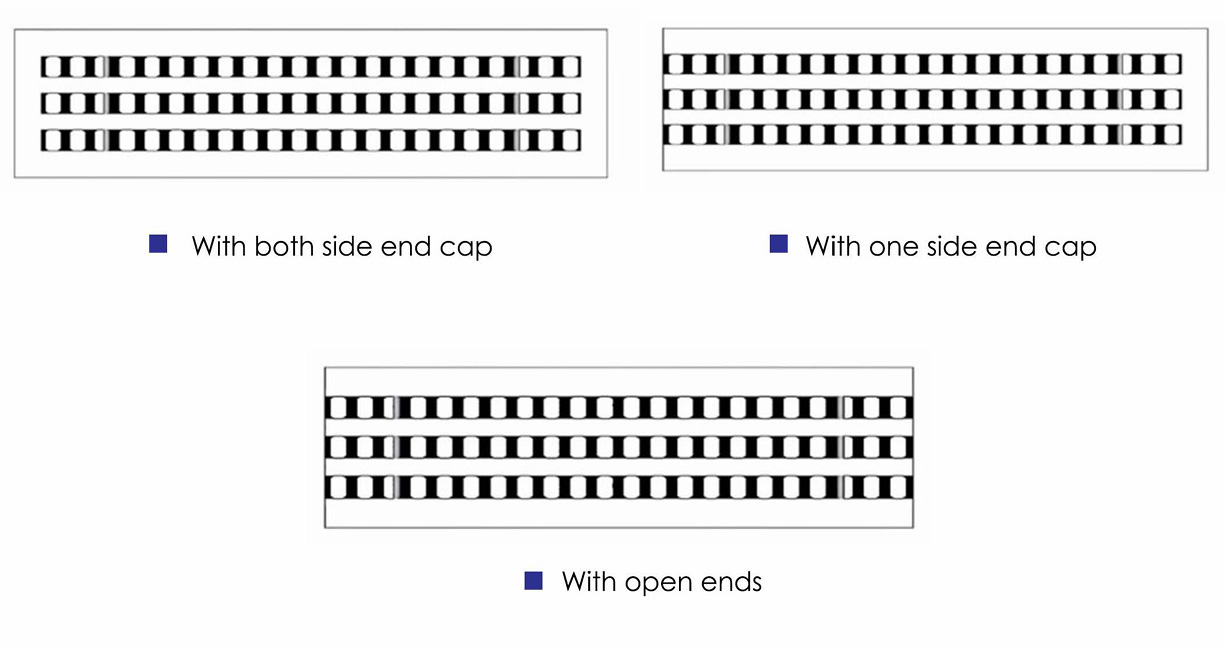

End Cap
Slot Connection

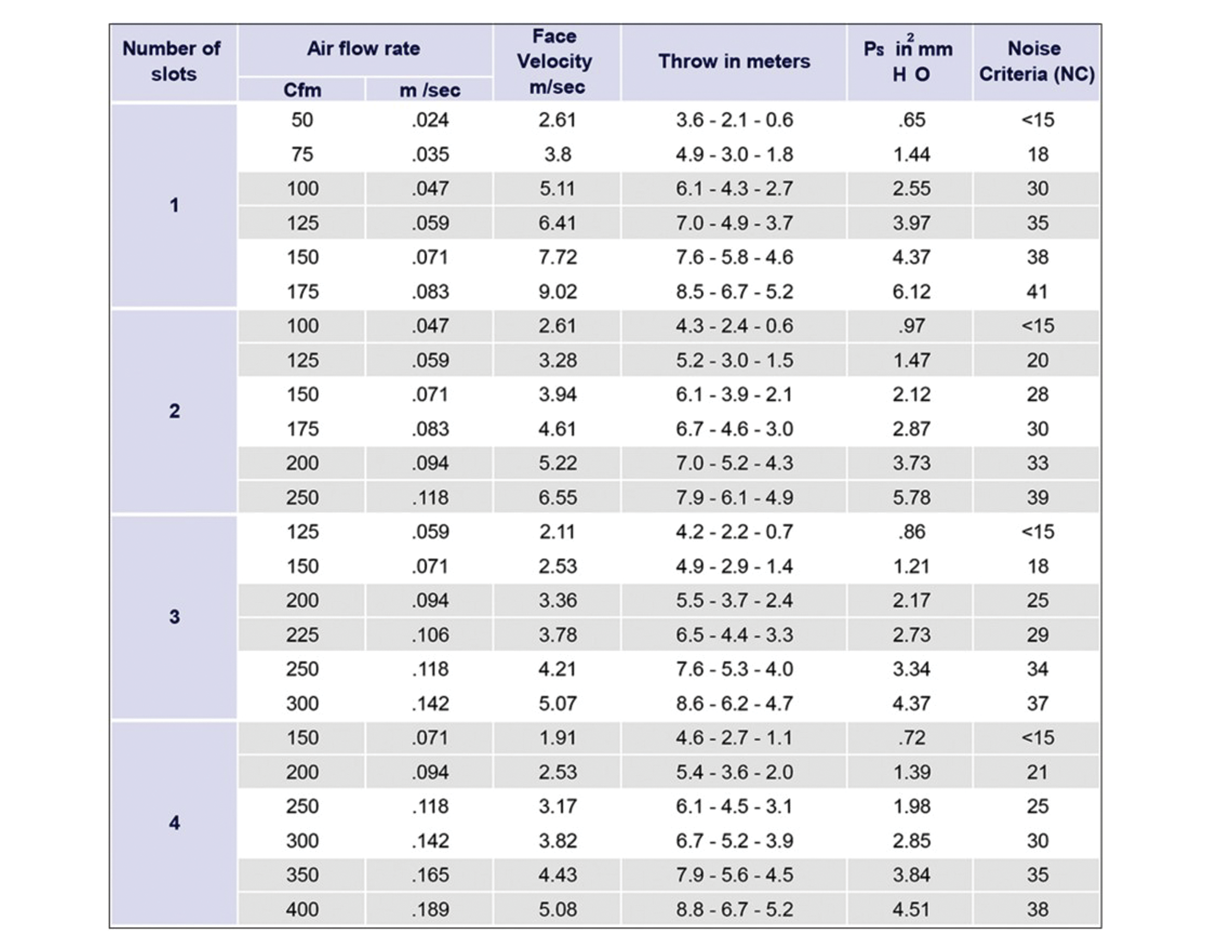

Supply Linear Slot Diffuser

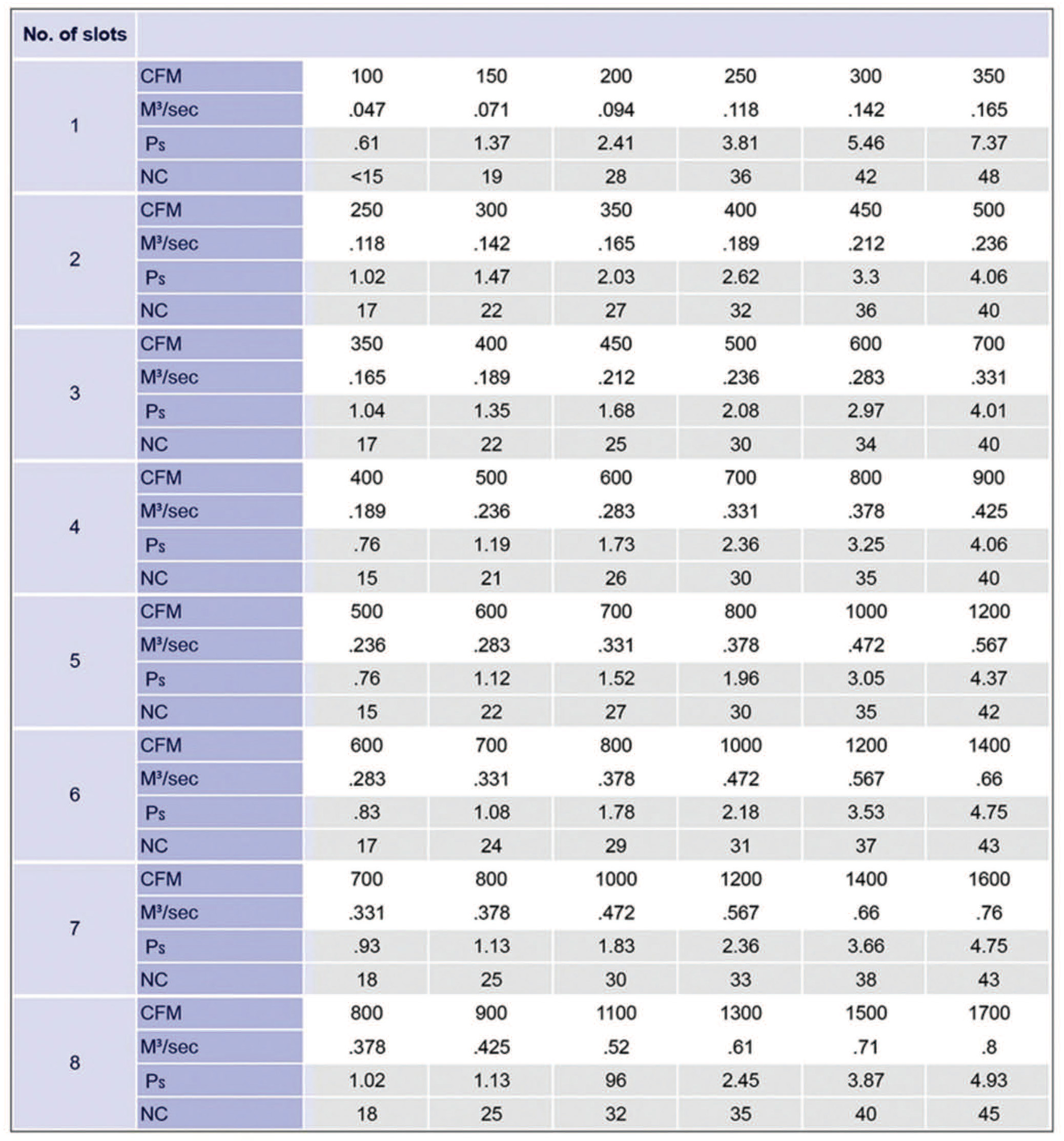

- Data based on one meter length of the diffuser with damper fully opened.
- Face velocity is measured in m/sec.
- Ps: static pressure loss is in mm of H2O. area factor in square meters.
- Throw (meters) is measured for a terminal velocities of 0.25, 0.5 & 0.75 m/sec.
- NC based on a room attenuation of 10 db.

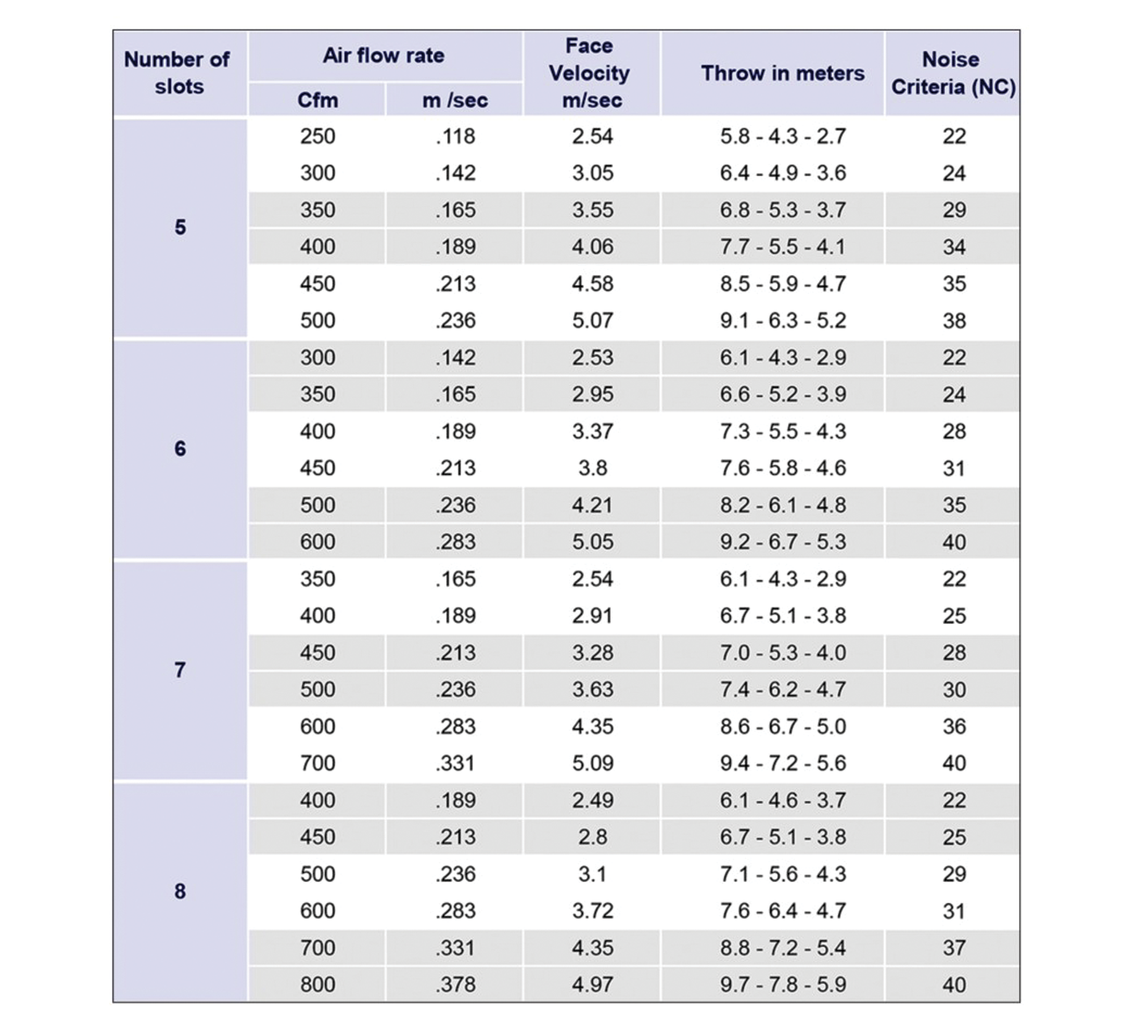

Supply Linear Slot Diffuser
- Data based on one meter length of the diffuser with damper fully opened.
- Face velocity is measured in m/sec.
- Ps: static pressure loss is in mm of H2O. area factor in square meters.
- Throw (meters) is measured for a terminal velocities of 0.25, 0.5 & 0.75 m/sec.
- NC based on a room attenuation of 10 db.
Return Linear Slot Diffuser
- Data based on one meter length of the diffuser with damper fully opened.
- Face velocity is measured in m/sec.
- Ps: static pressure loss is in mm of H2O. area factor in square meters.
- Throw (meters) is measured for a terminal velocities of 0.25, 0.5 & 0.75 m/sec.
- NC based on a room attenuation of 10 db.

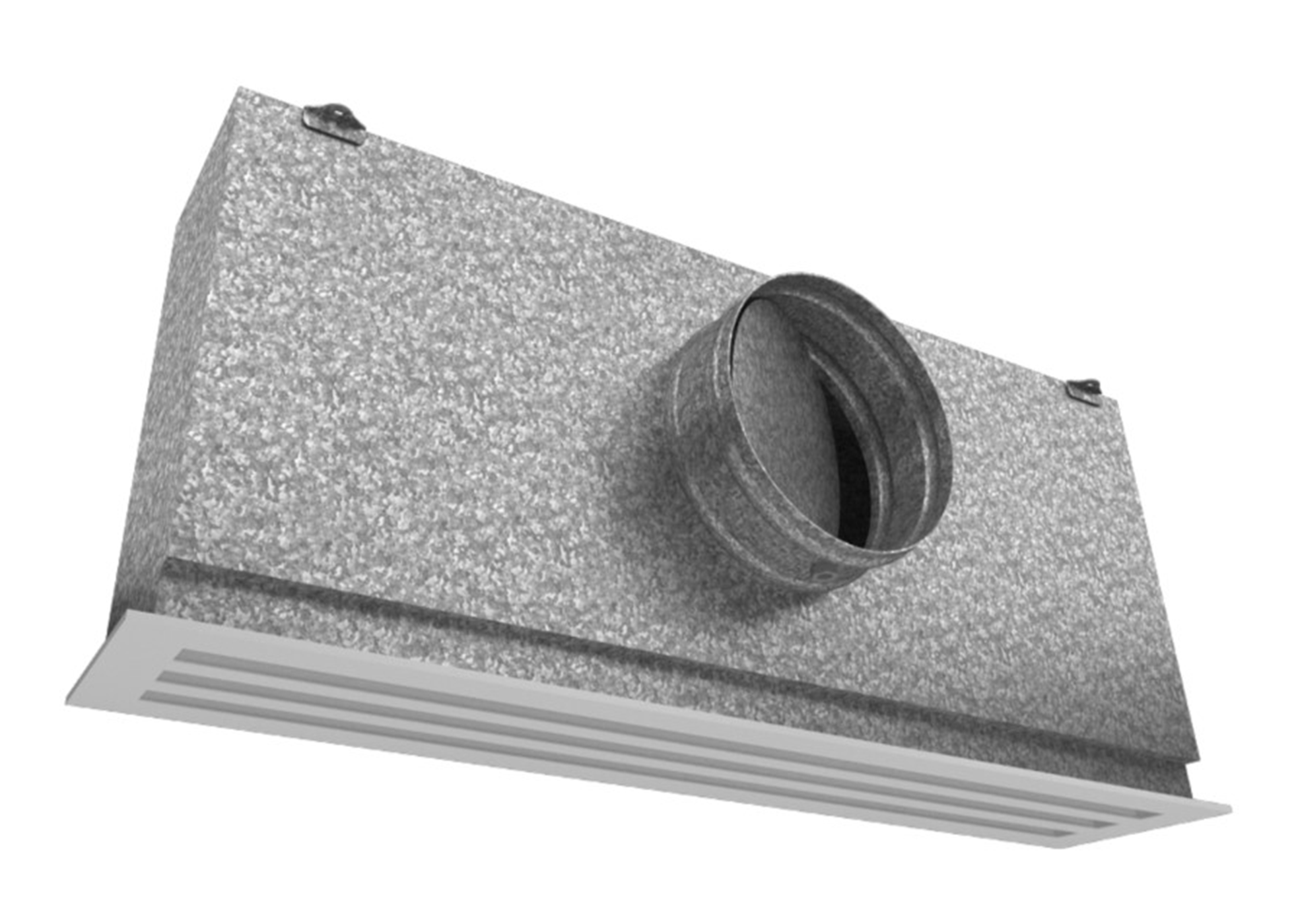

Plenum Box
- Plenum box manufactured from galvanized steel 22 or 20 gauges as standard and non standard gauges are available with flexibility of manufactured.
- Plenum box supplied with round neck and internal insulation as standard.
- Round neck manufactured from galvanized steel 22 or 20 gauges with standard length 100 mm and variable diameter.
- Round neck may be supplied with round volume control damper as option.
Round Neck ( Volume Damper)
-
Round Neck may be supplied with round volume control damper which is accessible from the face of slot diffuser it self by screw driver without access door.

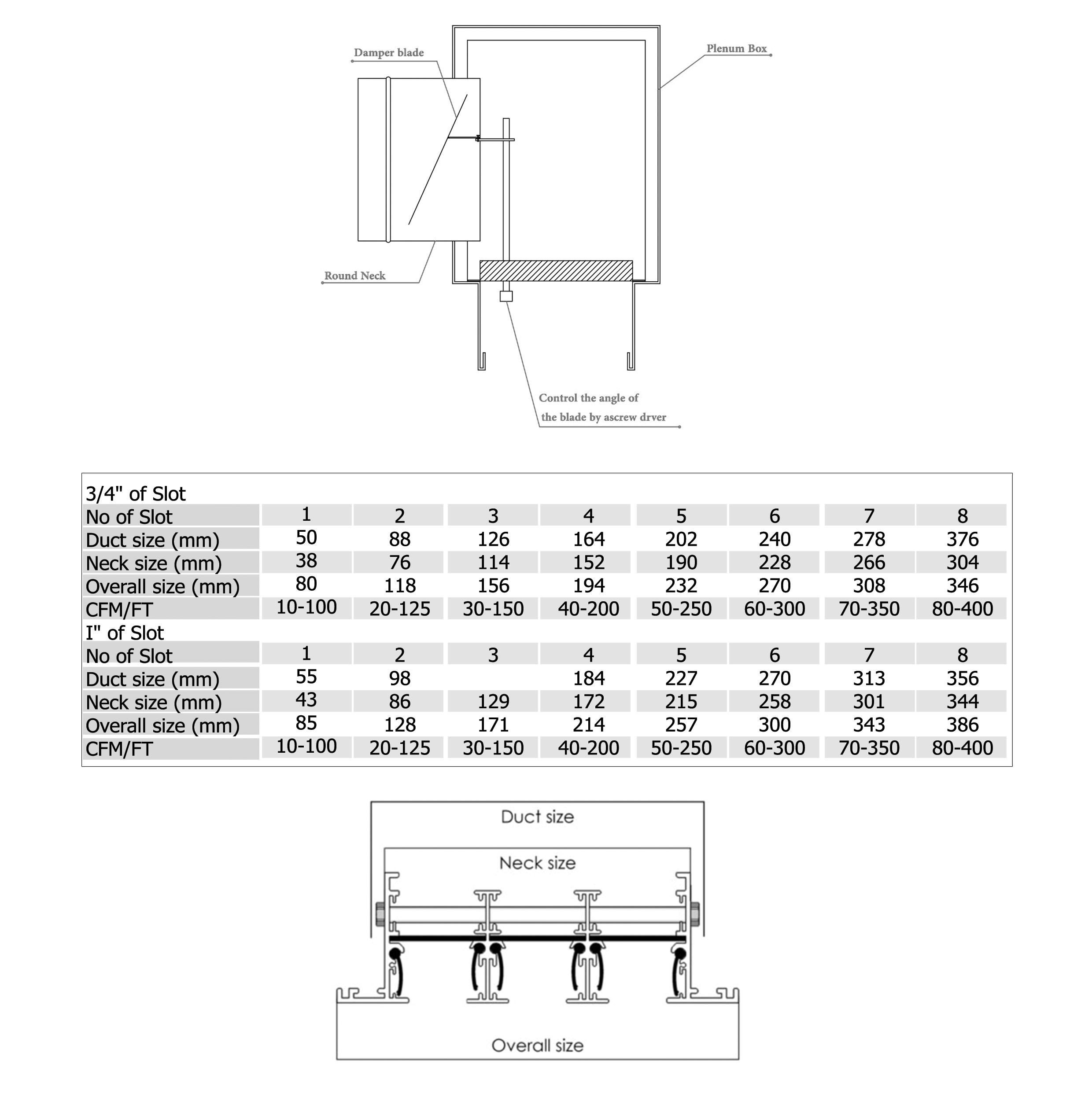

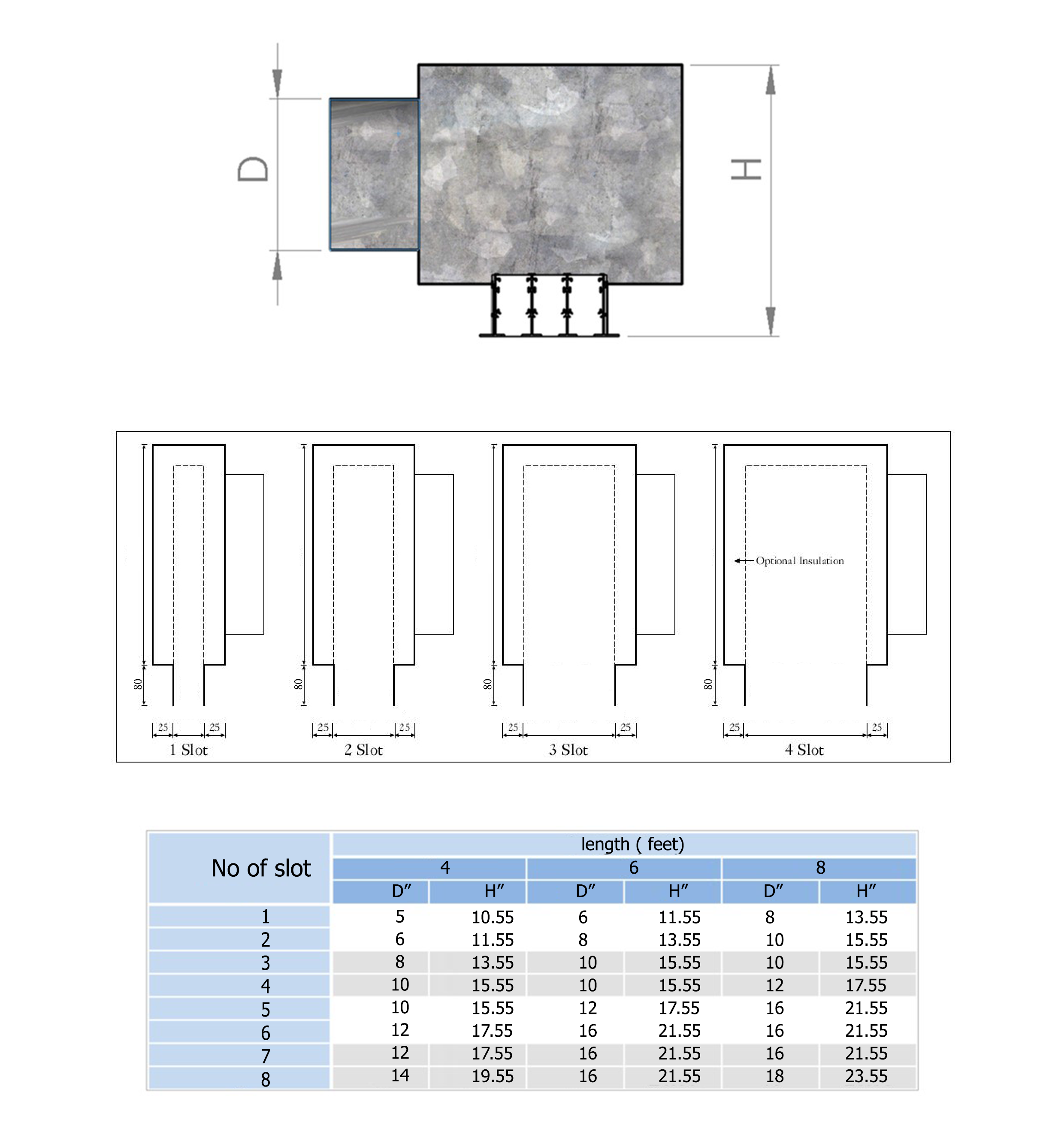

Plenum Box Dimensions

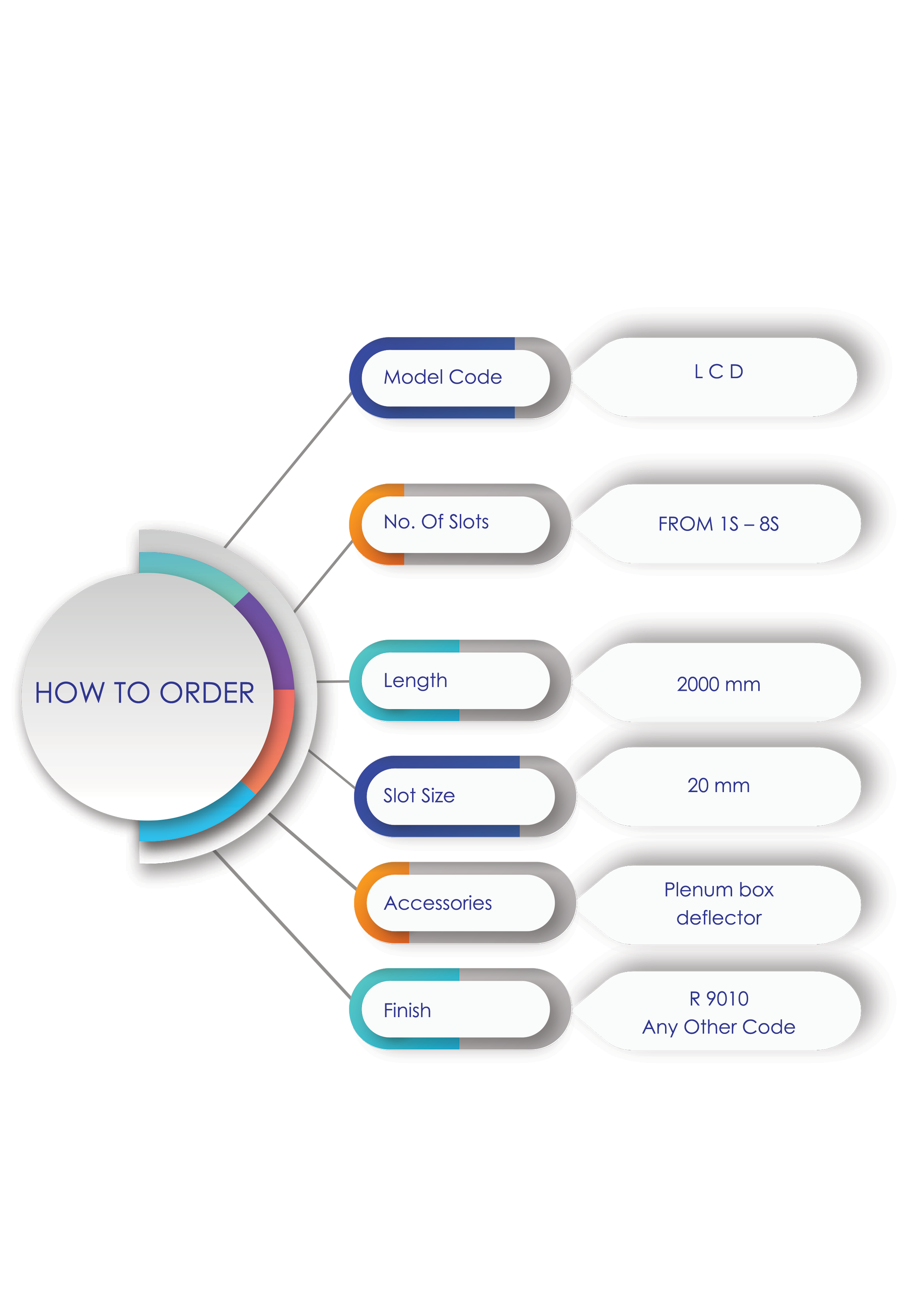

How to order
