• Frame and blades manufactured from high quality extruded aluminum profiles with  Powder coated color finish.
• Blades are fixed rigidly to the main frame by rivets.
• Blades are set at angle of 45° to the horizontal with 35 mm spacing.
• Air louver is weather proofed and blades are inclined downwards to protect against rain water.
• Air Louver may be used for fresh air or exhaust air, fresh air louver (FAL) supplied with easily removable filter as standard and exhaust air louver (EX.AL) supplied with galvanized iron  wire mesh 1.5 mm thickness as standard with flexibility of supplying is available as option.
• Air louver can be supplied with easily removable volume damper. Damper is fixed rigidly to the frame by aluminum rivets.
• Air louver can be supplied with galvanized iron wire mesh with 1.5 mm thickness and other thicknesses and material are available as option.
• Air louver can be supplied with easily removable filter with 20 mm thickness as standard and non standard thicknesses are available as option.
• Air louvers are designed to provide weather protection for ventilation opening of buildings and electrical transformer rooms, etc.
• Powder coated color finish per RAL color codes as standard and flexibility of finish.

• Face velocity vs. total pressure drop.

• Intake pressure drop includes pressure drop across filters.
• Readings are taken when the damper is fully opened condition

• Face velocity vs. total pressure drop across the louver

Width in mm

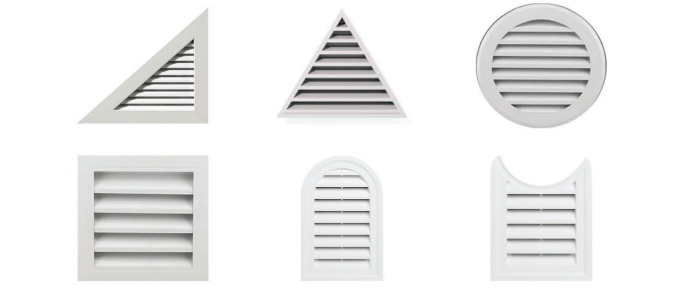

■ In addition to standard. square and rectangular patterns Egy-Air can also fabricate special louvers to almost any practical design.
■ Circular. Semi-circular. Triangular. Hexagonal or any non-standard shape.
■ Non standard Air louver can be supplied with all accessories wire mesh filters and volume control dampers.
