Door Grill DG
Construction
- Frame: High quality extrudedaluminum profiles with 30 mm flange width as standard.
- Blades: High quality extruded aluminum profiles.
- Blade pitch: 20 mm
Description
- Frame and blades are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.

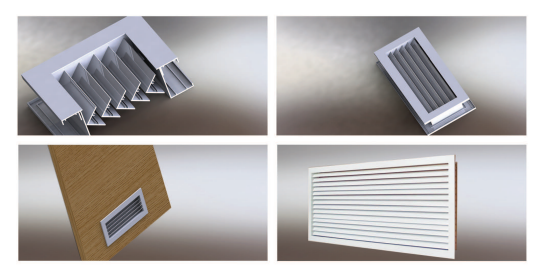

- Inverted “V” type horizontal blades are fixed rigidly to the frame.
- Blades are spaced at a distance of 20 mm.
- Grilles are made to withstand heavy use to which door grilles are subjected.

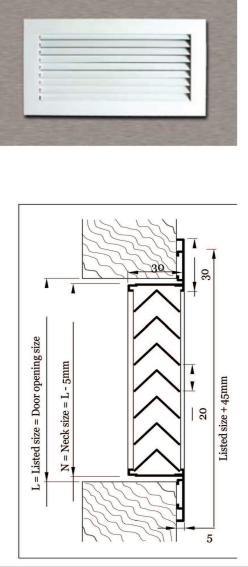

- Frame is fabricated to suit door thickness of 30 mm to 60mm.
- Structure provides around 70% free area for air.
- Used in facilities such as offices, hospitals, schools and toilets for transfer of air from one room to another room.
Construction
- Frame: High quality extruded aluminum profiles with 30 mm flange width as standard.
- Blades: High quality extruded aluminum profiles.
- Blade pitch: 20 mm.
Description
- Frame and blades are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Inverted “V” type horizontal blades are fixed rigidly to the frame to avoid vibration and corrosion.
- Blades are spaced at a distance of 20 mm.

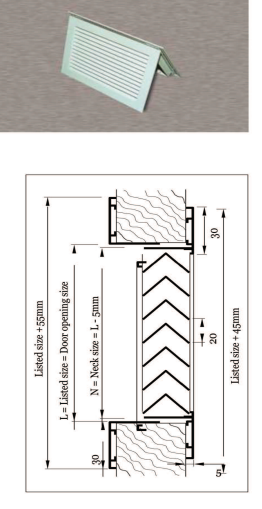

- Provided with a counter frame for fixing on both sides of the door.
- Made to withstand heavy use to which door grilles are subjected.
- Frame is fabricated to suit door thickness of 30 mm to 60 mm.
- Structure provides around 70% free area for air transmission.
- Used in facilities such as offices, hospitals, schools and toilets for transfer of air from one room to another room
Standard Sizes And Fixing Details
Standard Sizes:
- Available in square and rectangular sizes
- Non standard sizes available as option.
Fixing details:
- Screw fixing from flange to door.

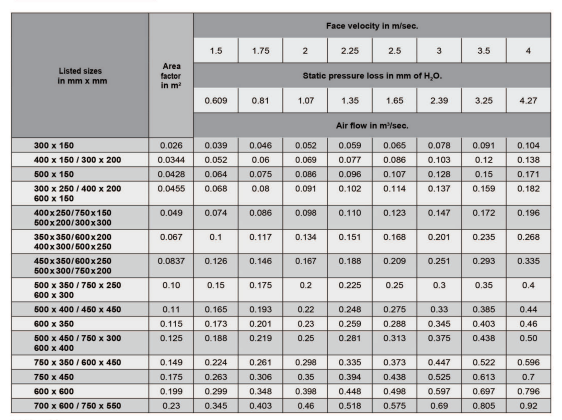

Air Flow Data
* NC < 20

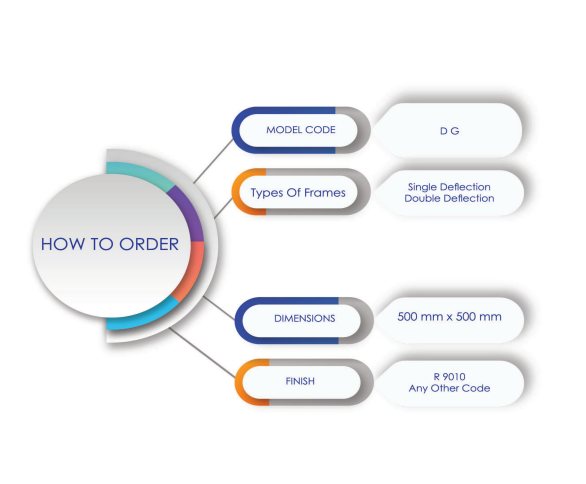

How to order
