air outlets | Ventilation Grilles
Air Grill AG
Construction
1-Frame
Made from High quality extruded aluminum profile with 30 mm flange width as standard and nonstandard widths are available as option.
2 – Blades
Made from High quality aluminum profiles 0° and 15° deflection. Horizontal face bars with 0° and 15° deflection 1 way throw and 2 ways throw.
3 – Bar Spacing
20 mm as standard. 6 mm as option.
4 – Damper frame and blade
Made from High quality extruded aluminum profiles.
Description
- Frame and Blades made from of high quality extruded aluminum profiled with Powder coated color finish.
- Three Different Frames as Options and six Different blades with different angles as option with flexibility of manufacturing and finish.
- Horizontal face bars with 0° and 15° deflection 1 way throw and 2 ways throw Fixed rigidly to the frame with 6 mm pipes.
- Supplied single deflection or double deflection and with volume control damper or without volume control damper.
- Total structure is manufactured by mechanical assembly, assuring rigidity and to maintain straight line appearance.
- Foam gasket is sealed around the back of the frame as option to avoid air leakage.
- Supplied with C – clamps for concealed fixing as option and another Multiple Fixing Options are available.
- Powder coated color finish per RAL codes as a standard and flexibility of finish.
Types of Blades And Types of Frames
- Two types of adjustable blades.
- Two types of Standard and non Standard Frames

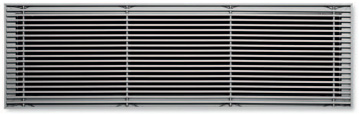

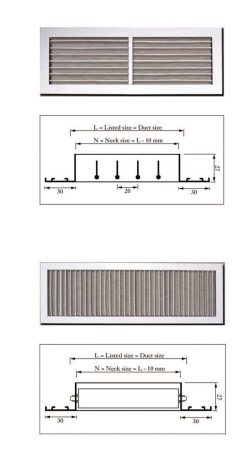

Front Horizontal
Construction
Frame : High quality extruded aluminum profile with 30 mm flange width as standard. 12, 20, 24 mm flange widths are optional.
Blades : Aerofoil blades from aluminum profiles.
Blade spacing : 20 mm as standard.
Description
- The frame and blades are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Grilles have two sets parallel aerofoil blades with one set mounted horizontally on the front and other set vertically at the rear.
- Frame is separated from aerofoil deflection blades by nylon bushings. This method of assembly ensures quiet, smooth and rattle free operation.
- Deflection blades can be adjusted manually and individually, to provide air deflection in both horizontal and vertical planes.
- Maximum effective pressure areas can be achieved
when the blades are positioned at 0° position.
Standard finishes:
- Natural anodized aluminum finish.
- Powder coated color finish as per RAL color codes.
- Flexibility of finishing is available as option.

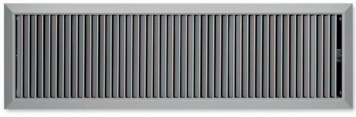

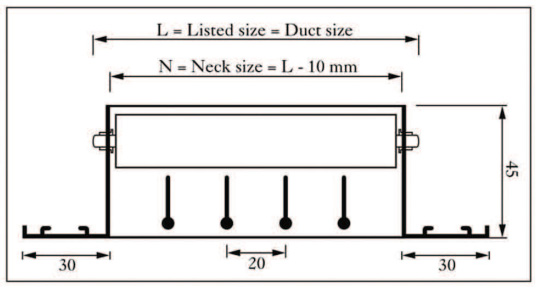

Front Vertical
Construction
Frame : High quality extruded aluminum profile with 30 mm flange width as standard.
12, 20, 24 mm flange widths are optional.
Blades : Aerofoil blades from aluminum profiles.
Blade spacing : 20 mm as standard.
Option:
Damper frame and blades: High quality extruded aluminum profiles with natural aluminum finish. Black matt finish as option.
Description
- The frame and blades are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Grilles have two sets parallel aerofoil blades with one set mounted vertically on the front and other set horizontally at the rear.
- Frame is separated from aerofoil deflection blades by nylon bushings. This method of assembly ensures quiet, smooth and rattle free operation.
- Deflection blades can be adjusted manually and individually, to provide air deflection in both horizontal and vertical planes.
- Grilles are rigidly fixed with opposed blade damper by grippers. Damper blade is screw operated from the face opening.
- Foam gasket is sealed around the back of the frame as option to avoid air leakage.
Standard finishes:
- Natural anodized aluminum finish.
- Powder coated color finish as per RAL color codes.
- Flexibility of finishing is available as option.

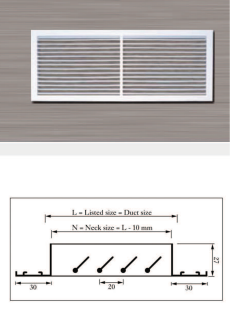

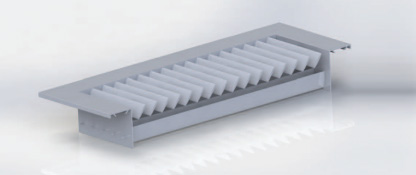

Fixed Horizontal Blades
Construction
Frame : High quality extruded aluminum profile with 30 mm flange width as standard.
12, 20, 24 mm flange widths are optional.
Blades : Aerofoil blades from aluminum profiles.
Blade spacing : 20 mm as standard.
Description
- The frame and blades are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Deflection blades are fixed rigidly to the frame at an angle of 45° to the horizontal plane.
Standard finishes:
- Natural anodized aluminum finish.
- Powder coated color finish as per RAL color codes.
- Flexibility of finishing is available as option.
Adjustable Blades
Construction
Frame : High quality extruded aluminum profile with 30 mm flange width as standard.
12, 20, 24 mm flange widths are optional.
Blades : Aerofoil blades from aluminum profiles.
Blade spacing : 20 mm as standard
Description
- The frame and blades are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Frame is separated from aerofoil deflection blades by nylon bushings. This method of assembly ensures quiet, smooth and rattle free operation.
- Deflection blades can be adjusted manually and individually in the horizontal plane to obtain optimum air distribution.
- Maximum effective pressure areas can be achieved when the blades are positioned at 0° horizontal position.
Standard finishes:
- Natural anodized aluminum finish.
- Powder coated color finish as per RAL color codes.
- Flexibility of finishing is available as option.

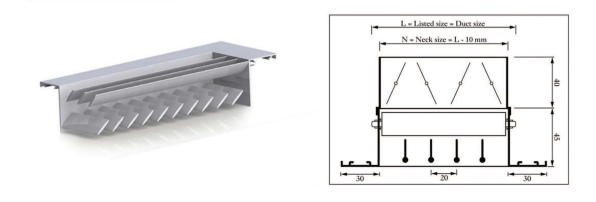

Technical Data Double Deflection
The new air grill basic ventilation grilles with Their gently sloped border combine function With an attractive design; they can be installed In walls, sills or rectangular ducts.
- Nominal sizes 200 × 250 – 1000 × 200 mm.
- Volume flow rate range 200 – 1400 CFM Or 0.0944 – 0.06607 m³/sec.
- Energy-efficient and acoustically optimised air discharge.
- Symmetric blade profile for two-way entry flow.
- Uniform look and easy adjustment due to concealed blade linkage.
- Gently sloped border construction, almost completely flush with the installation surface
- Linear look, ideal for continuous horizontal runs.
- Use of existing rear assemblies.
- Easy replacement of existing grilles due to standard installation dimensions.
- Optional equipment and accessories.
- Installation sub frame.
- Attachments for volume flow rate balancing and air direction control.
- Concealed screw fixing.
- Spring clip fixing.
- Ventilation grille of Type X-GRILLE Basic as supply air or extract air variant for comfort zones and industrial zones.
- Attractive design element for building owners and architects with demanding aesthetic requirements.
- Directed supply air discharge for mixed flow ventilation.
- Blades are adjustable to meet different local requirements.
- For variable and constant volume flows.
- For supply air to room air temperature differences from -12 to +4 K.
- For installation in walls, sills and rectangular Ducts.
Fixing :
- Concealed screw fixing.
- Spring clip fixing.only with installation sub frame.
Accessories :
- Installation sub frame: for the fast and simple
- installation of ventilation grilles.
Standards and guidelines :
- Sound power level of the air-regenerated noise measured according to EN ISO 5135.

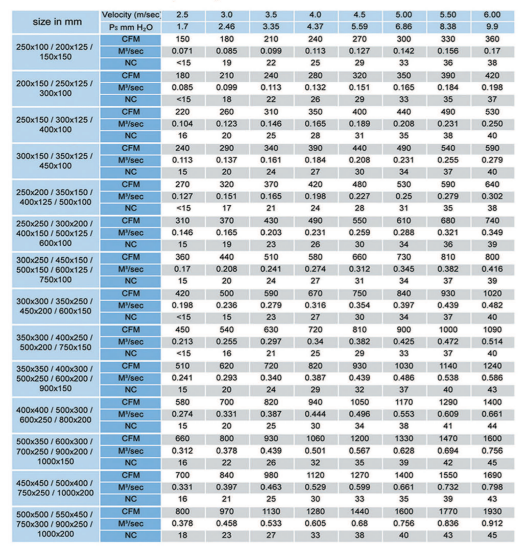

Air Grill Supply Double Delfection
- 0° & 45° deflection -20 mm spacing.
- Face velocity is measured in m/sec.
- Data based on one meter unit length of the grill with damper in full open position.
- Throw (meters) is measured for a terminal velocities of 0.25, 0.5 & 0.75 m/sec.
- Ps: static pressure loss is in mm of H2O.
- NC based on a room attenuation of 10 db.
Air Grill Supply Double Delfection
- 0° & 45° deflection -20 mm spacing.
- Face velocity is measured in m/sec.
- Data based on one meter unit length of the grill with damper in full open position.
- Throw (meters) is measured for a terminal velocities of 0.25, 0.5 & 0.75 m/sec.
- Ps: static pressure loss is in mm of H2O.
- NC based on a room attenuation of 10 db.
Technical Data Single Deflection
The new air grill basic ventilation grilles with Their gently sloped border combine function With an attractive design; they can be installed In walls, sills or rectangular ducts.
- Nominal sizes 100 × 250 – 1000 × 200 mm.
- Volume flow rate range 60 – 2200 CFM
- Or 0.0283 – 1.039 m³/sec.
- Energy-efficient and acoustically optimised air discharge.
- Symmetric blade profile for two-way entry flow.
- Uniform look and easy adjustment due to concealed blade linkage.
- Gently sloped border construction, almost completely flush with the installation surface.
- Linear look, ideal for continuous horizontal runs.
- Use of existing rear assemblies.
- Easy replacement of existing grilles due to standard installation dimensions.
Optional equipment and accessories.
- Installation sub frame.
- Attachments for volume flow rate balancing and air direction control.
- Concealed screw fixing.
- Spring clip fixing.
- Ventilation grille of Type X-GRILLE Basic as supply air or extract air variant for comfort zones and industrial zones.
- Attractive design element for building owners and architects with demanding aesthetic requirements.
- Directed supply air discharge for mixed flow ventilation.
- Blades are adjustable to meet different local requirements.
- For variable and constant volume flows.
- For supply air to room air temperature differences from -12 to +4 K.
- For installation in walls, sills and rectangular Ducts.
Fixing :
- Concealed screw fixing.
- Spring clip fixing.
only with installation sub frame.
Accessories :
- Installation sub frame: for the fast and simple
installation of ventilation grilles.
Standards and guidelines :
- Sound power level of the air-regenerated
noise measured according to EN ISO 5135.
Reurn Air Girll Single Deflection
- 45° deflection – 20 mm spacing.
- Face velocity is measured in m/sec.
- Data based on one meter unit length of the grill with damper in full open position.
- Throw (meters) is measured for a terminal velocities of 0.25, 0.5 & 0.75 m/sec.
- Ps: static pressure loss is in mm of H2O.
- NC based on a room attenuation of 10 db.
Reurn Air Girll Single Deflection
- 0° deflection – 20 mm spacing.
- Face velocity is measured in m/sec.
- Data based on one meter unit length of the grill with damper in full open position.
- Throw (meters) is measured for a terminal velocities of 0.25, 0.5 & 0.75 m/sec.
- Ps: static pressure loss is in mm of H2O.
- NC based on a room attenuation of 10 db.
Option items
- Ventilation grilles, made of aluminum, with individually adjustable, vertical blades.
- Ventilation grilles, made of aluminum, with fixed horizontal blades – also for horizontal runs.

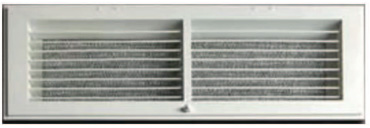

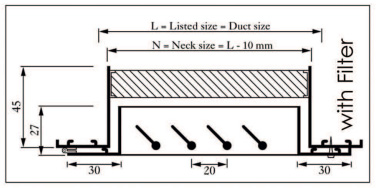

- Fresh air grille made of aluminum, with Filter frame1 mm thick aluminum sheet.
- Filter media: Aluminum mesh.

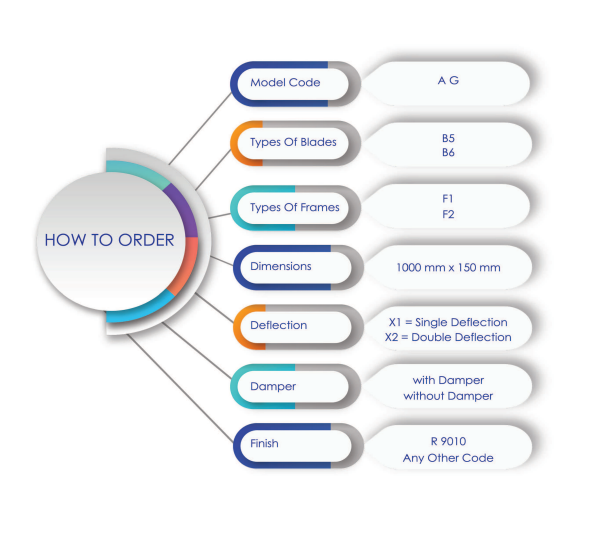

How to order
