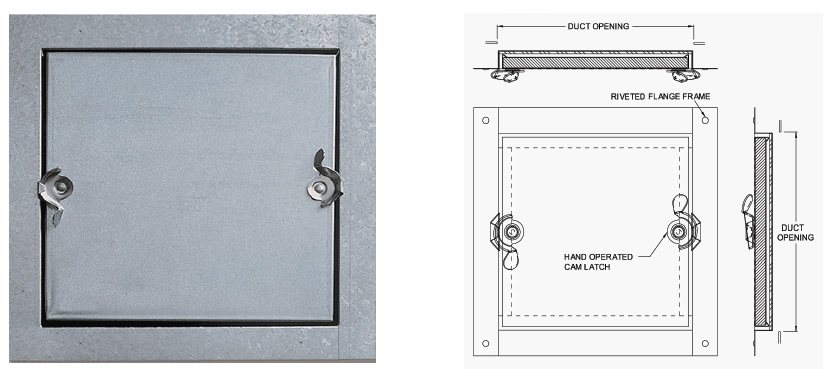

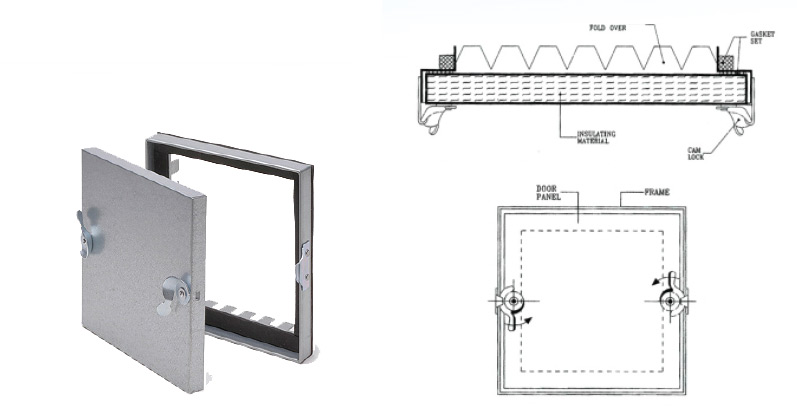

Access doors of 25mm thickness with double walled and mineral wool insulation. Designed to provide access to fire dampers, volume control dampers, filters, etc.
18 & 16 – gauge door frame for type 1
20 -gauge door panels for type 2
2 4-gauge door panels
Fiberglass insulation
Foam gasket

Economical access to ducts.
Product Features :
These doors are for use in low to medium
pressure ducts.
Double cam – no hinge, removable door
panel.
Options :
Aluminum.
Stainless Steel.
Material
Galvanized Steel (Std.)
Aluminum
304 SS
316 SS
insulation
1” Thick (Std.)
2” Thick
Fiberglass Ductboard (-F)
Thickness:
